Custom Actions

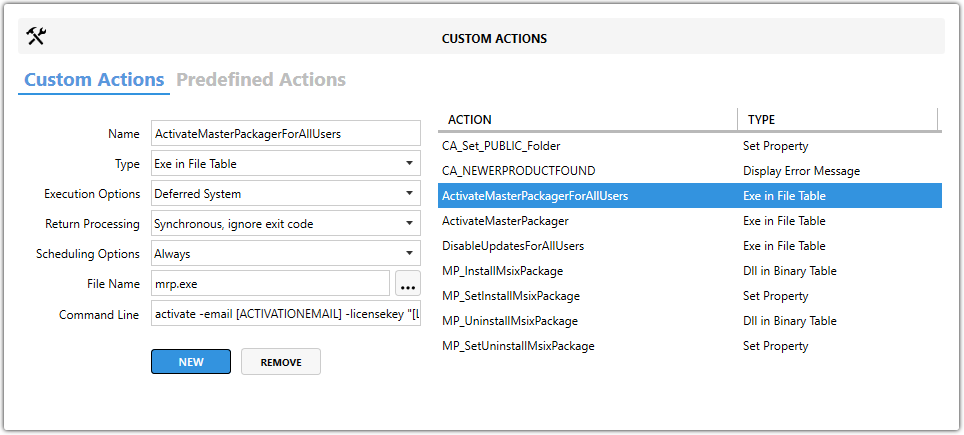

The Custom Actions view displays all custom actions in the MSI package.

Custom actions let you run scripts or executables during installation and uninstallation when standard MSI tables are not enough.

Action groups

Master Packager supports two groups of actions:

• Custom Actions — actions you build for a specific automation scenario.
• Predefined Actions — standardized actions created by the Master Packager team for common tasks that are not covered by standard MSI tables.

Core fields

Field	Description
Name	Sets the custom action name. Use a unique, descriptive name so the purpose is easy to identify.
Type	Sets the custom action type and where the action source is stored.
Execution Options	Defines when the action runs and under which security context.
Return Processing	Defines how the installer handles the action result.
Scheduling Options	Determines how often the action runs and where it fits in the sequence.

Supported custom action types

Type	Available sources or subtypes
JScript	In Binary Table In File Table In CustomAction Table In path of Property
VBScript	In Binary Table In File Table In CustomAction Table In path of Property
DLL	In Binary Table In File Table
EXE	In Binary Table In File Table On Target PC In path of Property
MSI Internal	Display Error Message Set Directory Set Property

Execution options

Option	Description
Immediate	Runs immediately when the installer processes the action.
Deferred User	Runs later during the execution phase under the user context.
Rollback User	Runs during rollback under the user context.
Commit User	Runs at the end of installation if everything succeeded, under the user context.
Deferred System	Runs later during the execution phase under the system context with elevated privileges.
Rollback System	Runs during rollback under the system context.
Commit System	Runs at the end of installation if everything succeeded, under the system context.
Deferred TSAware	Runs during the execution phase as a Terminal Server-aware action.
Rollback TSAware	Runs during rollback as a Terminal Server-aware action.
Commit TSAware	Runs during the commit phase as a Terminal Server-aware action.

Return processing

Option	Description
Synchronous, waits for exit code	Runs the action, waits for it to finish, and checks the exit code.
Synchronous, ignore exit code	Runs the action, waits for it to finish, and ignores the result.
Asynchronous, waits for exit code	Starts the action, continues processing, and later waits for completion and checks the result.
Asynchronous, ignore exit code	Starts the action and continues immediately without waiting or checking the result.

tip

For critical tasks, use a synchronous option so the installer can handle failures correctly.

Scheduling options

Option	Description
Always	Executes every time the action is encountered.
Execute first time	Runs only during the initial install, not during repairs or reinstalls.
Execute once per process	Runs only once even if it is referenced multiple times in the sequence.
Execute only after UI sequence	Delays execution until after the user interface sequence is complete.

note

Proper scheduling helps custom actions run in the correct context and avoids unintended repeated execution.

Predefined actions

Standardized actions created by the Master Packager team for common tasks that cannot be performed by using standard MSI tables.

See the full list in the Predefined Custom Actions section.
