Advanced Value Lookup

Advanced Value Lookup shows contextual information for MSI column values, so you can understand references, paths, and types without looking them up elsewhere.

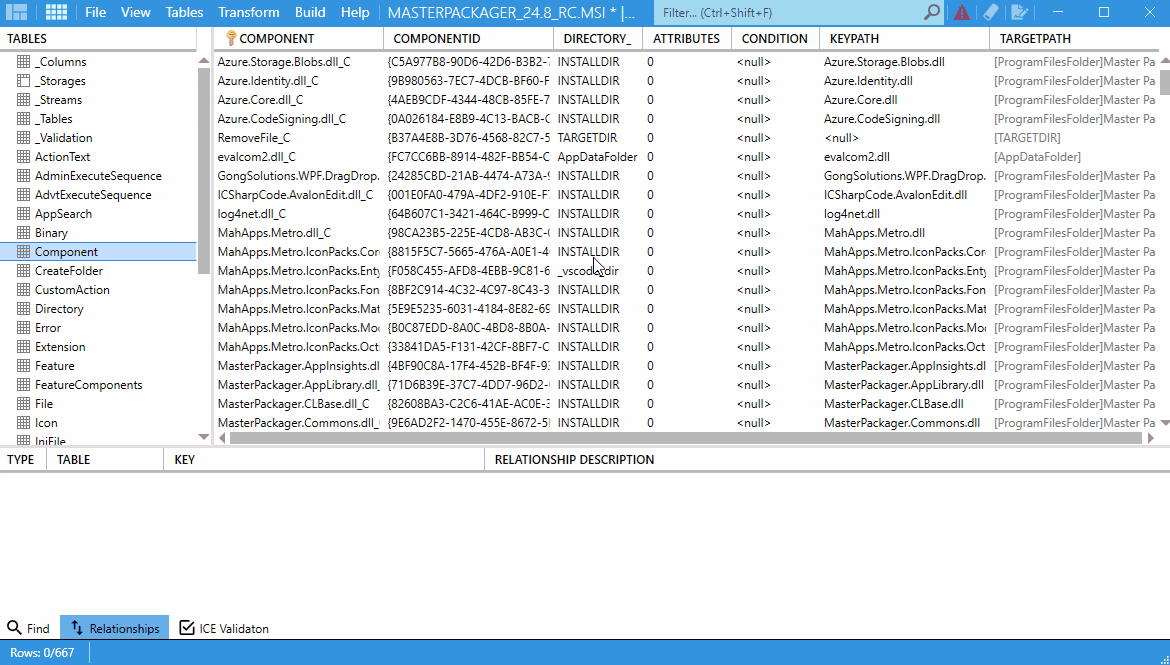

Advanced Value Lookup - Master Packager Table Editor

Supported lookups​

ContextWhat Master Packager shows
Directory_ columnsThe related key name, resolved MSI path, and resolved disk path.
CustomAction table Type columnThe numeric value and the corresponding custom action type name.

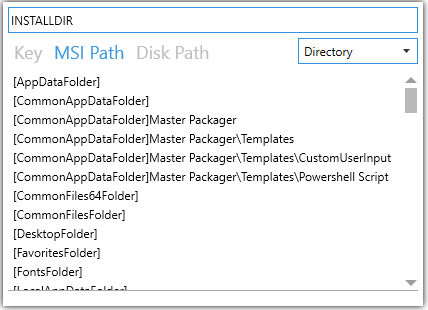

Directory values​

In columns such as Directory_, Master Packager resolves the referenced path so you can see where a file or component is installed.

Directory_ column

Custom action types​

In the CustomAction table, the Type column stores numeric values that represent specific custom action types. Master Packager shows both the numeric value and the matching type name, so you do not need to decode it manually.
