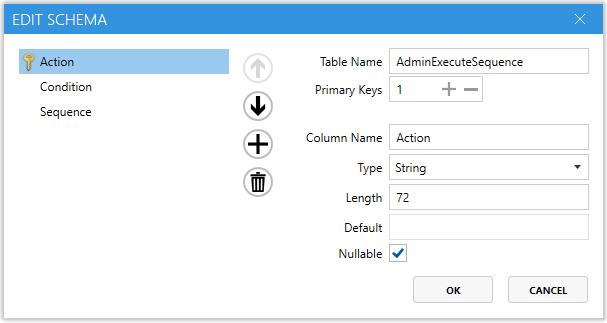

Edit Table Schema

The Edit Table Schema feature lets advanced users create new MSI tables or modify existing ones. Use it when you need to change the database structure, not just table contents.

With this feature, you can define new tables or adjust existing columns, data types, and constraints.

note

Changing table schemas can affect MSI behavior. Back up the package before making schema edits.

Schema fields

Field	Description
Table Name	Defines the MSI table name you are editing or creating.
Primary Keys	Shows how many primary key columns the table has. Primary keys uniquely identify each row.
Column Name	Defines the name of a column. You can add, remove, or rename columns as needed.
Type	Integer ? Numeric values. String ? Text values. Binary ? Binary data such as images or scripts.
Length	Defines the maximum size of the column value. This mainly applies to text and other variable-length data types.
Default	Sets a default value for new rows unless you change it manually.
Nullable	Checked ? The column can be left empty. Unchecked ? Every row must contain a value.
Picture	Defines a picture mask used for validation or formatting in certain data types. It is often left blank unless a specific pattern is required.

When to use it

Use this feature when you need to:

• Create custom tables in the MSI.
• Add, remove, or rename columns in existing tables.
• Package custom logic that requires new data structures.
• Troubleshoot schema issues in a corrupted MSI.
